      Helios-P pressure sensor general description

      Are you looking for the general description of the Helios-P pressure sensor?

      Helios-P LoRaWAN (1)

      To the Helios product range

      The Helios product line is a multipurpose wireless LPWA(N) reading and transmission unit, which is equipped with different measuring probes and probes in different configurations. Helios is particularly suitable for reading out industrial measurement transmitters via a variety of common interfaces, such as RS485, I2C, SPI, UART, 4-20mA etc. In addition, the Helios sensors have digital and analog inputs and outputs. With an innovative power management, the product line supports sensors up to 12V, also with four commercially available AA cells. In addition, special versions are available that allow operation with an external power supply via a power supply. Helios products are available with the communication standards mioty®, LoRaWAN® or NB-IoT and LTE-CAT-M1 and are suitable for indoor and outdoor use. The Helios series is equipped with an external antenna, which ensures the best reception even in cellars or industrial halls.

      📢 Important: The Helios transmission unit is not suitable for generic connection with general sensors. Rather, different use cases are outsourced to subversions. Measuring probes and probes are included in the scope of delivery in the respective versions. For example, the Helios-P version is a pressure sensor and is supplied with an industrial pressure transmitter.

      Features

      • Readout and transmission unit for external sensors
      • Supports various standards, such as RS485, I2C, SPI, UART, 4 to 20mA, PT100/1000 sensors, one-wire sensors, digital and analog inputs and outputs, pulse counters, etc.
      • Supports external sensors up to 12V also with battery
      • Interchangeable batteries (recommended cells Varta Ultra Lithium AA or equivalent)
      • External antenna
      • IP66, 80mm x 152mm x 46mm with screw tabs
      • Optionally available with external power supply (not IP66)
      • Provisioning via NFC and downlinks available
      • Cellular communication via CoAP via Sentinum Datahub available (generic LWM2M upcoming)
      • Examples of applications: pressure sensor, weather station, pulse counter, bee scale

      Helios Subversions

      Name Applications Communi-cation Brief description Product link Standard version Status
      Helios-TPT-100 Industrial temperature measurement LoRaWAN®,NB-IoT+LTE-CAT-M1,mioty® Temperature sensor with PT100 temperature sensor, cylindrical design.   PT100 temperature sensor with cable Upcoming
      Helios-TWEA Low-cost weather station for outdoor use LoRaWAN®,NB-IoT+LTE-CAT-M1,mioty® Helios low-cost weather station   5 in 1 weather station: rainfall, wind speed, wind direction, solar radiation, temperature, humidity In Development
      Helios-TDS-RA Temperature measurement indoor and outdoor, temperature measurement and round objects, temperature measurement of pipes. LoRaWAN®,NB-IoT+LTE-CAT-M1,mioty® Temperature sensor with Dallas temperature sensor as pipe fitting sensor.   Dallas Temperature Sensor In Production
      Helios-TPT-1000 Industrial temperature measurement LoRaWAN®,NB-IoT+LTE-CAT-M1,mioty® Temperature sensor with PT1000 temperature sensor, cylindrical design.   PT1000 temperature sensor with cable Upcoming
      Helios-BEE Bienenwaage Measurement of the weight of beehives LoRaWAN®,NB-IoT+LTE-CAT-M1,mioty® Honey scale up to 200kg, mounted on two profiles   Weighing up to 200kg, delivered on two profiles In Production
      Helios-PC-M Detection of revolutions for spindle or rotating elements LoRaWAN®,NB-IoT+LTE-CAT-M1,mioty® Pulse counter with magnet   Pulse counter with magnet In Production
      Helios-TDS-ZY Temperature measurement indoor and outdoor, surface temperature measurement LoRaWAN®,NB-IoT+LTE-CAT-M1,mioty® Temperature sensor with Dallas temperature sensor, cylindrical design.   Dallas Temperature Sensor In Production
      Helios-PP Determination of the degree of contamination of filters LoRaWAN®,NB-IoT+LTE-CAT-M1,mioty® Industrial differential pressure sensor for determining a pressure difference between two pressure transmitters   Two pressure transmitters each 10 bar maximum pressure, 1/4 inch thread Upcoming
      Helios-P Drucksensor Line pressure monitoring for heating systems, compressed air systems, etc. LoRaWAN®,NB-IoT+LTE-CAT-M1,mioty® Industrial differential pressure sensor for liquids and gases, measuring probes available with different maximum pressures and process threads.   Maximum pressure 10 bar, 1/4 inch thread In Production
      Helios-PC Metering, Submetering, Industrial Use LoRaWAN®,NB-IoT+LTE-CAT-M1,mioty® Pulse counter   Pulse counter with cable In Production

      Helios-P  Helios-P LoRaWAN

      Description

      The Helios-P is an industrial pressure sensor based on the Helios product range. The pressure transmitter is available for different maximum pressures and is supplied with a 1/4 inch process thread. Optionally, adapters for 1/2 inch threads can be purchased. The print data is read out at regular intervals and sent via mioty®, LoRaWAN® or NB-IoT and LTE-CAT-M1. In addition, warning thresholds or delta values can be defined via NFC or downlink, which triggers an extraordinary transmission if the limit values are exceeded. In addition, a buzzer offers the possibility to generate an acoustic signal directly on the sensor to facilitate operation. The Helios series is equipped with an external antenna, which ensures the best reception even in cellars or industrial halls. The power supply is ensured by four commercially available AA cells. The sensor has an IP66 rating and can be easily mounted anywhere with dimensions of 80mm x 152mm x 46mm and additional screw strips. Activation is done via NFC.

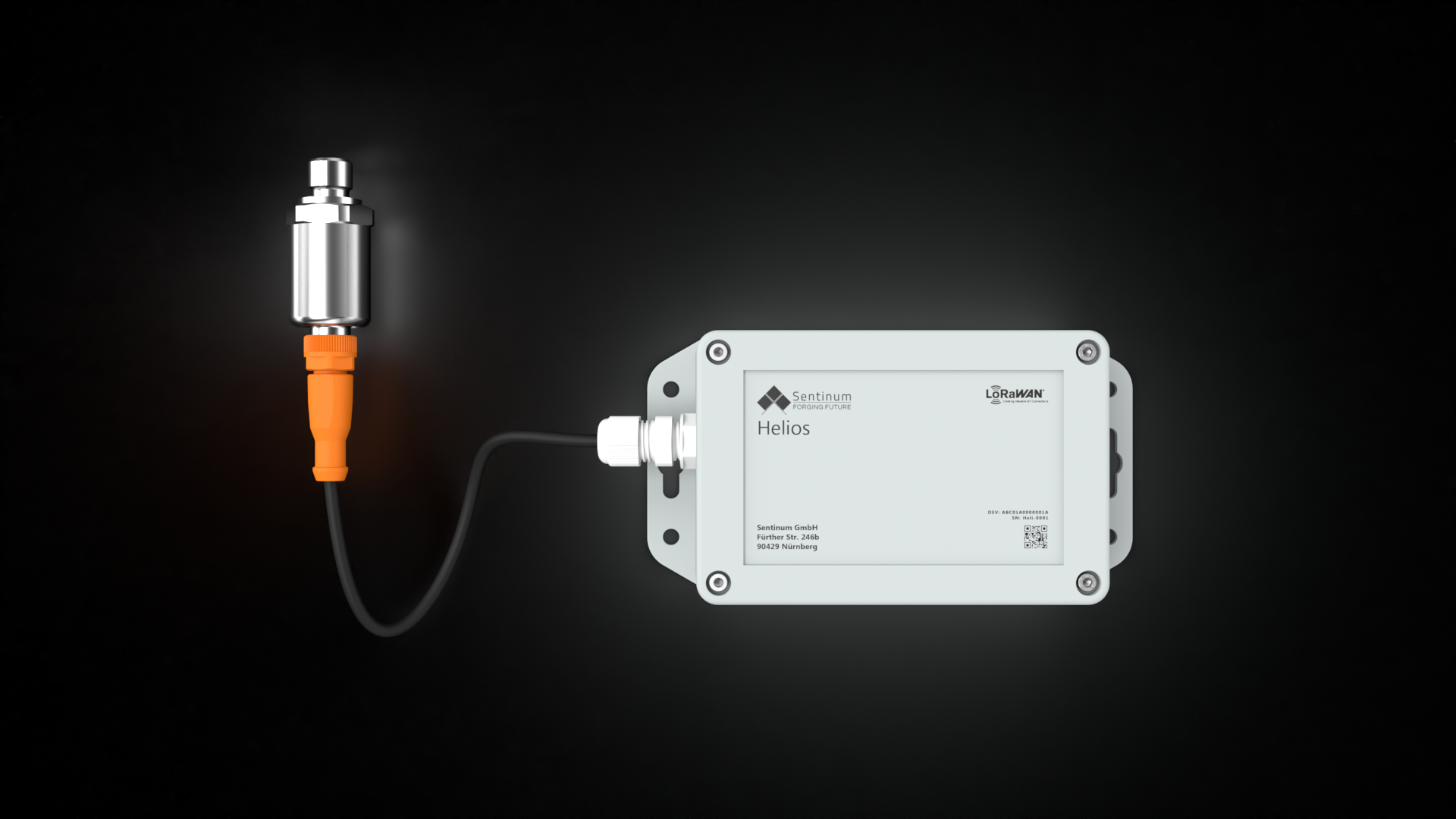

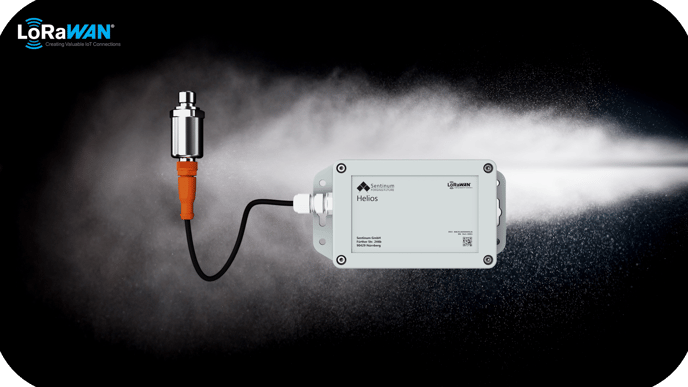

      Helios 3 LoRaWANHelios-P LoRaWAN

      Helios 1 LoRaWANHelios 2 LoRaWAN

      Core Features

      • Pressure transducer stainless steel up to 10 bar (optionally up to 400 bar)
      • External antenna
      • IP66, 80mm x 152mm x 46mm with screw tabs
      • Optionally available with external power supply (not IP66)
      • Provisioning via NFC and downlinks available
      • Cellular communication via CoAP via Sentinum Datahub available (generic LWM2M upcoming)

      Scope of delivery

      • Pressure transmitter up to 10 bar (other versions available) with 1/4 inch male thread
      • Cable 2m
      • Helios Transmission Box
      • External antenna
      • Batteries
      • Power supply for -NET articles

      Helios-P Article Codes

      Helios-P Order  Code Tree
      Prefix Code product series Communi-cation Sensors Pressure range (bar) Electricity supply Example
      S HELI LOEU, mioty, NB P 10, 100, 400, 60 BAT, NET  S-HELI-LOEU-P-100-BAT

      Helios-P Article Codes

      Article code Sensors Additional description Maximum pressure (bar) Communi-cation Electricity supply Status
      S-HELI-LOEU-P-10-BAT Pressure Transmitter     LoRaWAN® Batterie In Production
      S-HELI-LOEU-P-60-BAT Pressure Transmitter     LoRaWAN® Batterie In Production
      S-HELI-LOEU-P-100-BAT Pressure Transmitter     LoRaWAN® Batterie In Production
      S-HELI-LOEU-P-450-BAT Pressure Transmitter     LoRaWAN® Batterie In Production
      S-HELI-MIOTY-P-10-BAT Pressure Transmitter     mioty® Batterie In Production
      S-HELI-MIOTY-P-60-BAT Pressure Transmitter     mioty® Batterie In Production
      S-HELI-MIOTY-P-100-BAT Pressure Transmitter     mioty® Batterie In Production
      S-HELI-MIOTY-P-450-BAT Pressure Transmitter     mioty® Batterie In Production
      S-HELI-NB-P-10-BAT Pressure Transmitter     NB-IoT+LTE-CAT-M1 Batterie In Production
      S-HELI-NB-P-60-BAT Pressure Transmitter     NB-IoT+LTE-CAT-M1 Batterie In Production
      S-HELI-NB-P-100-BAT Pressure Transmitter     NB-IoT+LTE-CAT-M1 Batterie In Production
      S-HELI-NB-P-450-BAT Pressure Transmitter     NB-IoT+LTE-CAT-M1 Batterie In Production
      S-HELI-LOEU-P-10-NET Pressure Transmitter     LoRaWAN® Netzteil In Production
      S-HELI-LOEU-P-60-NET Pressure Transmitter     LoRaWAN® Netzteil In Production
      S-HELI-LOEU-P-100-NET Pressure Transmitter     LoRaWAN® Netzteil In ProductionIn Production
      S-HELI-LOEU-P-450-NET Pressure Transmitter     LoRaWAN® Netzteil In Production
      S-HELI-MIOTY-P-10-NET Pressure Transmitter     mioty® Netzteil In Production
      S-HELI-MIOTY-P-60-NET Pressure Transmitter     mioty® Netzteil In Production
      S-HELI-MIOTY-P-100-NET Pressure Transmitter     mioty® Netzteil In Production
      S-HELI-MIOTY-P-450-NET Pressure Transmitter     mioty® Netzteil In Production
      S-HELI-NB-P-10-BAT Pressure Transmitter     NB-IoT+LTE-CAT-M1 Netzteil In Production
      S-HELI-NB-P-10-BAT Pressure Transmitter     NB-IoT+LTE-CAT-M1 Netzteil In Production
      S-HELI-NB-P-10-BAT Pressure Transmitter     NB-IoT+LTE-CAT-M1 Netzteil In Production
      S-HELI-NB-P-10-BAT Pressure Transmitter     NB-IoT+LTE-CAT-M1   In Production
      Z-ADAP-14-12 Accessories Accessories, adapter from 1/4 inch to 1/2 inch male thread stainless steel without seal       In Production
      Z-ADAP-14-12 Accessories Accessories, industrial adapter from 1/4 inch to 1/2 inch male thread with seal       In Production

      Examples of applications

      Pressure measurement in a compressed air system20221216_160402

      20221216_160357

      Documentary Links

      Name URL
      NFC and downlink documentation https://www.notion.so/sentinum/Helios-P-NFC-und-Downlink-Database-a86095d98ef440fca8ea70c33fd50ec7
      Payload Description https://www.notion.so/sentinum/c0e1d3ed954a4e66a72a69ef9bc1277d?v=64746eed36574f46840994d6d9a5bd85
      Payload Decoder in .js https://www.notion.so/sentinum/Helios-P-Dataconverter-DE-6f55430e88f14735bac1b564e4e6edcb
      Quickstart https://sentinum.notion.site/Quickstart-Helios-Serie-e1da8230d7874632897f98d2080473df?pvs=4
      Technical Data Sheet https://sentinum.notion.site/Helios-P-Technisches-Datenblatt-fc0bf64ae0de447b86cca576b0469130?pvs=4
      Operating instructions https://sentinum.notion.site/Betriebsanleitung-Helios-Serie-39d176ace3654b9ea46ad687a72d8170?pvs=4
