      Nyx Dataconverter in js.

      Are you looking for the Nyx Dataconverter in js.?

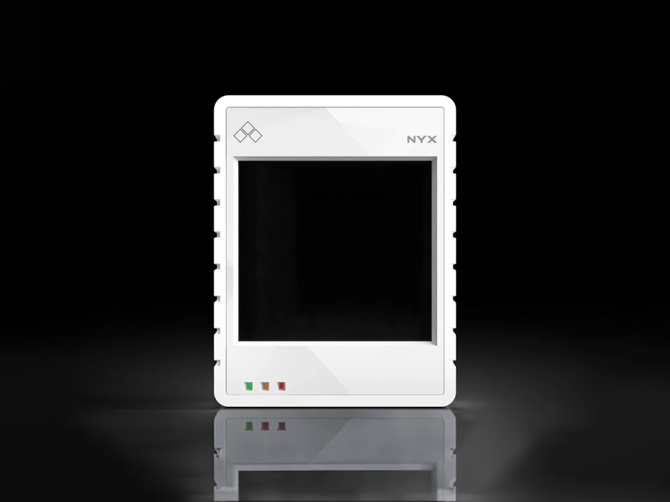

      Nyx_Front

        function decodeUplink(input) {



          var decoded = {};

          var bytes = input.bytes;



          if (input.fPort == 1) { //TELEMETRY



              //decode header

              decoded.base_id = bytes[0] >> 4;

              decoded.major_version = bytes[0] & 0x0F;

              decoded.minor_version = bytes[1] >> 4;

              decoded.product_version = bytes[1] & 0x0F;

              decoded.up_cnt = bytes[2];

              decoded.battery_voltage = ((bytes[3] << 8) | bytes[4]) / 1000.0;

              decoded.internal_temperature = ((bytes[5] << 8) | bytes[6]) / 10 - 100;

              decoded.networkBaseType = 'lorawan';

              decoded.networkSubType = 'tti';

              var it = 7;

              if (decoded.major_version >= 1) {

                  it = 7;

                  //Luftfeuchte ist bei allen Varianten enthalten

                  decoded.humidity = bytes[it++];

                  decoded.dew_point = ((bytes[it++] << 8) | bytes[it++]) / 10 - 100;

                  decoded.alarm_level = bytes[it++]; //Alarm-Level, entspricht grün, gelb, rot



                  if (decoded.product_version & 0x01) { //  Lux Sensor

                      var raw_lux = (bytes[it++] << 8 | bytes[it++]);

                      // decoded.lux_status = raw_lux != 0xffff ? 0 : 1; //raw value is 0xFFFF in case of error

                      decoded.lux = (1 << (raw_lux >> 12)) * (raw_lux & 0x0FFF) * 0.01;

                  }



                  if (decoded.product_version & 0x04) { //  Has Bme688 Sensor

                      decoded.bme_status = bytes[it++];

                      decoded.pressure = (bytes[it++] << 8 | bytes[it++]);

                      if (decoded.product_version & 0x02) { // Has IAQ Feature

                          decoded.iaq_status = bytes[it++];

                          decoded.iaq_index = (bytes[it++] << 8 | bytes[it++]);

                      }

                  }

              }

          }



          return {

              data: decoded,

              warnings: [],

              errors: []

          };



      }

      Documentation Links

      You can find the links for further documentation on Nyx:
