SentiGate Indoor Technical data sheet

Feature

Specification

Unit

Wi-Fi Frequency

2.400–2.4835 (802.11b/g/n)

GHz

Ethernet Port

RJ45 (10/100 Mbps)

-

Console Port

Type-C USB

-

Power Supply

PoE (IEEE 802.3af)

VDC

Power Consumption

12

W

Enclosure

Plastic (PC+ABS)

-

Ingress Protection

IP30

-

Feature

Specification

Unit

RX Sensitivity

–95 to –68 (depending on mode)

dBm

TX Power

Up to 19 (per chain)

dBm

Channels

1-13

-

Feature

Specification

Unit

SIM Type

Nano SIM Card

-

EG95 / EC25 (regional LTE bands)

-

Antenna Type

Specification

Unit

LoRa

RP-SMA Female

-

Wi-Fi

Internal

-

LTE

Internal

-

Features

Specification

Unit

Concentrator Chip

SX1302 Mini PCIe card (8-channel)

-

RX Sensitivity

≤ –139

dBm

TX Power

≤ 27

dBm

Supported Frequency Bands

EU868+

MHz

Features

Specification

Unit

SIM Format

Nano SIM

-

WCDMA (EG95-E)

B1, B8

-

GSM (EG95-E)

900 / 1800

MHz

LTE Bands (EG95-NA)

B2, B4, B5, B12, B13

-

WCDMA (EG95-NA)

B2, B4, B5

-

Power Supply Type

Specification

Unit

Primary Power Source

PoE (Power over Ethernet), IEEE 802.3af

-

Voltage Range (PoE)

42V to 57V DC

VDC

Power Consumption

12W

W

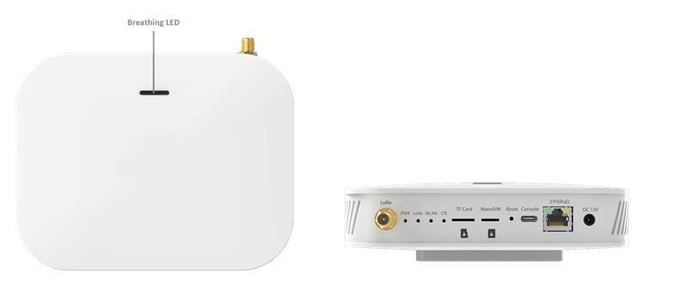

Interfaces

Description

Function

DC 12V

Power Input

Provides power supply for the gateway.

ETH(PoE)

RJ45 (10/100 Mbps)

10/100 Mbps Ethernet interface for wired network connectivity.
PoE (Power over Ethernet) allows the gateway to receive both power and data through a single Ethernet cable.

Console

Type-C USB

Used for debugging.

Reset

Reset Key

Short press: Restart the gateway.
Long press (5 sec and above): Restore factory settings.

NanoSIM

NanoSIM Card Slot

Slot for a NanoSIM card, enabling cellular connectivity. Included in all versions, even if LTE is not supported.

TF Card

SD Card Slot

A 16GB TF card is pre-installed in the gateway for data logging, system configurations, and other use cases that require local storage.

LEDs

Status Indicator LEDs

Power LED
Breathing LED
ETH LED
LoRa LED
WLAN LED
LTE LED

LoRa

LoRa Antenna Connector

RP-SMA female connector for external LoRa antenna, enabling LoRaWAN communication.

LEDs

Status Indication Description

PWR LED

Power indicator: The LED is on when device power is on

Breathing LED

Indicates the current status of the gateway. The breathing light can be programmed

ETH LED

·       ON: Linkup

·       OFF: Linkdown

·       Flicker: Data transmitting and receiving

LoRa LED

·       ON: LoRa is working

·       OFF: LoRa is not working

·       Flicker: Indicate LoRa Packet receiving and sending

WLAN LED

AP Mode:

·       ON: the AP is up

·       OFF: The AP is down

·       Flicker: Data receiving and sending

STA Mode:

·       Slow flicker (1 Hz): Disconnected

·       ON: Connected

·       Flicker: Data receiving and sending

LTE LED

·       Slow Flicker (1800 ms High / 200 ms Low): Network searching

·       Slow flicker (200 ms High / 1800 ms Low): Idle

·       Fast flicker (125 ms High / 125 ms Low): Ongoing data transfer

Features

Specifications

Wireless Standard

IEEE 802.11b / g / n

Operating frequency

ISM band: 2.412~2.472 (GHz)

Operation channels

2.4 GHz: 1-13

Transmit power: per chain (The max. power may be different depending on local regulations)

802.11b
1 Mbps: 19 dBm
11 Mbps: 19 dBm
802.11g
6 Mbps: 18 dBm
54 Mbps: 16 dBm
802.11n (2.4 GHz)
MCS0 (HT20): 18 dBm
MCS7 (HT20): 16 dBm
MCS0 (HT40): 17 dBm
MCS7 (HT40): 15dBm

Receiver sensitivity (Typical)

802.11b
1 Mbps: 95 dBm
11 Mbps: 88 dBm
802.11g
6 Mbps: 90 dBm
54 Mbps: 75 dBm
802.11n (2.4 GHz)
MCS0 (HT20): 89 dBm
MCS7 (HT20): 72 dBm
MCS0 (HT40): 86 dBm
MCS7 (HT40): 68 dBm

Parameter

Value

Unit

Dimensions

166 × 127.5 × 36

mm

Weight

0.3

Kg

Enclosure Material

PC + ABS Plastic

-

Ingress protection

IP69

-

Operating Conditions

Value

Unit

Operating Temperature:

-30 to +55

°C

Storage Temperature:

-40 to +85

°C

Operating Humidity

0 ~ 95

%RH

Storage Humidity

0 ~ 95

%RH
