      Apollon-Q T/R/TR Quickstart Guide

      You are looking for the Apollon-Q T/R/TR Quc

      Here you can find the Quickstart Guide for the Apollon-Q T/R/TR

      Apollon-Q_1.0

      NFC commissioning and location of the NFC tag

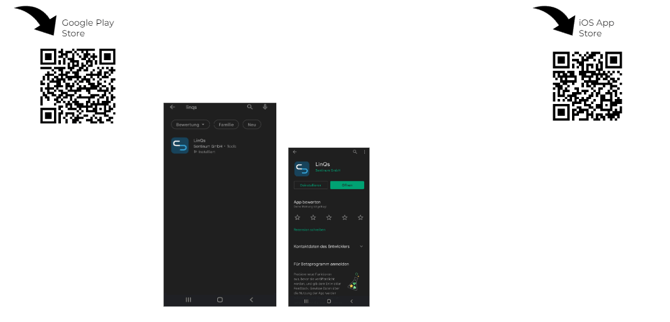

      1. Activation takes place via an NFC app. A smartphone is required for this. The app can be downloaded from the respective app stores. Simply search for "Sentinum LinQs" and download the LinQs app.Untitled (24)

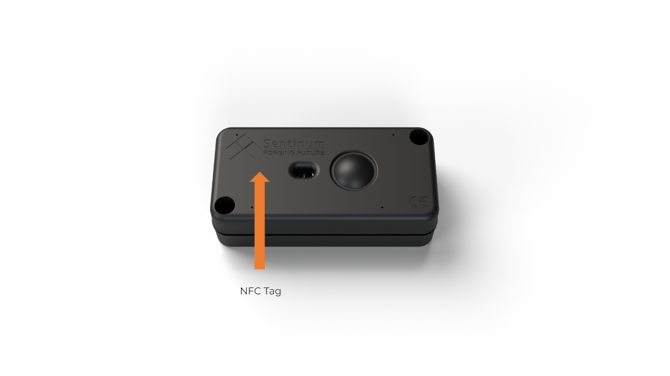

      2. First locate the tag on the sensor and then the reader on your end device. The location of the NFC tag can be found in the following images.Untitled (25)

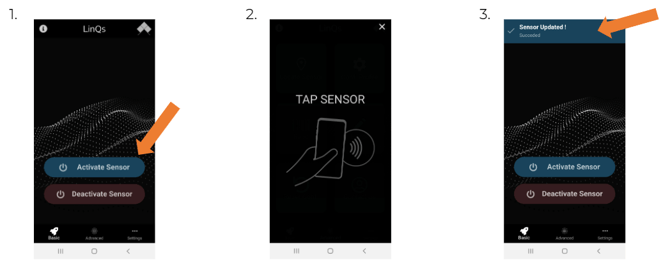

      3. Open the app and activate the sensor. To simply start the sensor in the basic settings, click on the "Activate Sensor" button in the app's start menu. Now place your end device on the NFC marker of the sensor. Untitled (26)
        If the sensor is activated, you will see "Sensor Updated!". You can then continue with the activation of further sensors.

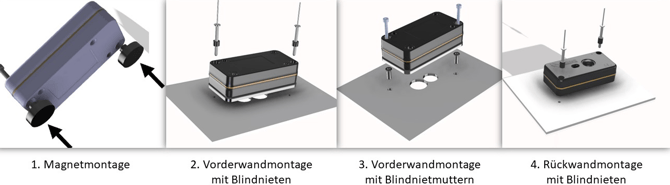

      Mounting typesUntitled (28)-1

      Payload decoder Apollon-Q series

      // Up to Date Apollon decoder
      function Decoder(bytes, port) {

          // Conversion of signed integers
          function uncomplement(val, bitwidth) {
              var isnegative = val & (1 << (bitwidth - 1));
              var boundary   = (1 << bitwidth);
              var minval     = -boundary;
              var mask       = boundary - 1;
              return isnegative ? minval + (val & mask) : val;
          }

          var decoded = {};

          if (port === 1) {

              // Attributes
              decoded.base_id         = bytes[0] >> 4;
              decoded.major_version   = bytes[0] & 0x0F;
              decoded.minor_version   = bytes[1] >> 4;
              decoded.product_version = bytes[1] & 0x0F;

              // Telemetry
              decoded.up_cnt               = bytes[2];
              decoded.battery_voltage      = ((bytes[3] << 8) | bytes[4]) / 1000.0;
              decoded.internal_temperature = bytes[5] - 128;
              decoded.alarm                = bytes[6] ? "ALARM" : "NO ALARM";
              decoded.master_value         = ((bytes[7] << 8) | bytes[8]); // in mm

              // Start of version specific fields
              var byte_cnt = 9;

              // ToF onboard
              if (bytes[1] & 0x01) {
                  decoded.tof_status   = bytes[byte_cnt++];
                  decoded.tof_distance = ((bytes[byte_cnt++] << 8) | bytes[byte_cnt++]); // in mm
                  decoded.tof_index    = bytes[byte_cnt++];
              }

              // Radar onboard
              if (bytes[1] & 0x02) {
                  decoded.radar_status      = bytes[byte_cnt++];
                  decoded.radar_no_peaks    = bytes[byte_cnt++];
                  decoded.radar_distance_1  = ((bytes[byte_cnt++] << 8) | bytes[byte_cnt++]);
                  decoded.radar_amplitude_1 = uncomplement((bytes[byte_cnt++] << 8) | bytes[byte_cnt++], 16);
                  decoded.radar_distance_2  = ((bytes[byte_cnt++] << 8) | bytes[byte_cnt++]);
                  decoded.radar_amplitude_2 = uncomplement((bytes[byte_cnt++] << 8) | bytes[byte_cnt++], 16);
                  decoded.radar_distance_3  = ((bytes[byte_cnt++] << 8) | bytes[byte_cnt++]);
                  decoded.radar_amplitude_3 = uncomplement((bytes[byte_cnt++] << 8) | bytes[byte_cnt++], 16);
              }

              // ACC onboard
              if (bytes[1] & 0x04) {
                  decoded.acc_status      = bytes[byte_cnt++] ? "Fehler" : "OK";
                  decoded.acc_orientation = bytes[byte_cnt++];
                  decoded.acc_open        = bytes[byte_cnt++];
                  decoded.acc_open_cnt    = ((bytes[byte_cnt++] << 8) | bytes[byte_cnt++]);
                  decoded.acc_impact      = bytes[byte_cnt++] ? "Vandalismus" : "OK";
              }

              // Hall onboard
              if (bytes[1] & 0x08) {
                  decoded.hall_open     = bytes[byte_cnt++];
                  decoded.hall_open_cnt = ((bytes[byte_cnt++] << 8) | bytes[byte_cnt++]);
              }
          }
          return decoded;
      }

      Documentation Links

      You can find the links for further documentation on Apollon-Q T/R/TR here:
