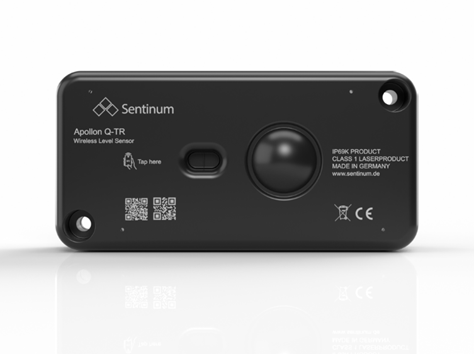

📄 You can view the PDF above or
download it here
.
Table of Contents
- Versions
- Part Number Legend
- General Features
- Connectivity and RF Specifications
- Localization of LoRaWAN Sensors
- ToF (Optical) Sensor Specifications
- Radar Sensor Specifications
- Temperature Sensor Specifications for -ACC Sensors
- Temperature for Non-ACC Sensors
- Technical Drawing Without Radar
- Technical Drawing with Radar
1. Versions
| Item Code | GNSS | Opening Detection | Available | Configuration |
|---|---|---|---|---|
S-APOQ-LOEU-T |
✖ | ✖ | ✔ | NFC |
S-APOQ-MIOTY-T |
✖ | ✖ | ✔ | NFC |
S-APOQ-LOEU-T-ACC |
✔ | ✔ | ✔ | NFC/BLE |
S-APOQ-LOEU-TR-ACC |
✔ | ✔ | ✔ | NFC/BLE |
S-APOQ-LOEU-SW-TR-ACC |
✔ | ✔ | ✔ | NFC/BLE |
S-APOQ-MIOTY-T-ACC |
✖ | ✔ | ✔ | NFC/BLE |
S-APOQ-MIOTY-TR-ACC |
✖ | ✔ | ✔ | NFC/BLE |
S-APOQ-MIOTY-SW-TR-ACC |
✖ | ✔ | ✔ | NFC/BLE |
S-APOQ-NBM1-T-ACC |
✔ | ✔ | ✔ | NFC/BLE |
S-APOQ-NBM1-TR-ACC |
✔ | ✔ | ✔ | NFC/BLE |
S-APOQ-NBM1-SW-TR-ACC |
✔ | ✔ | ✔ | NFC/BLE |
S-APOQ-LOEU-R-ACC |
✔ | ✔ | ✔ | NFC/BLE |
S-APOQ-MIOTY-R-ACC |
✖ | ✔ | ✔ | NFC/BLE |
S-APOQ-NBM1-R-ACC |
✔ | ✔ | ✔ | NFC/BLE |
2. Part Number Legend
| Description | Description |
|---|---|
LOEU |
LoRaWAN EU |
MIOTY |
mioty EU |
NBM1 |
NB-IoT, LTE-CAT-M1 |
SW |
Optimized radar for smart waste management, specifically designed for underground containers and heavily polluted areas |
T |
ToF (Time of Flight) |
R |
Radar |
TR |
Dual measurement principle combining ToF and radar |
ACC |
Accelerometer for flap opening and vandalism detection |
TR (without software) |
Suitable for liquids and good reflectors |
SMAV |
Small Angle of View (18° field of view) |
3. General Features
| Feature | Value | Unit |
|---|---|---|
| Dimensions (L × W × H) | 109 × 53 × 33 | mm |
| Weight | 160 | g |
| Operating temperature | −30 to +75 (up to +85 °C or +125 °C possible upon consultation prior to ordering, depending on the battery type) | °C |
| Storage temperature (recommended) | 15 to 25 | °C |
| Relative humidity during operation | 5 to 99 | % |
| Protection class | IP69K | – |
| Sensor technology: Distance | ToF (optical) and/or radar | – |
| Traffic Light Function | – | – |
| Acoustic alarm function | – | – |
| Provisioning | NFC, BLE (see version) | – |
| Material | Glass-fiber-reinforced polybutylene terephthalate (PBT-GB-20) | – |
| NFC antenna | Integrated | – |
| RF antenna | Integrated | – |
| Accelerometer | Optional for flap opening and vandalism detection | – |
| Batteries | Replaceable | – |
| Primary cell type |
LoRaWAN / mioty: 2 × 1.5 V (Energizer Ultimate Lithium recommended) orLiSOCL2 upon consultation NB-IoT / LTE-M: 2 × 3 V (recommended: Varta CR AH-RLiMnO2 ) |
V |
4. Connectivity and RF Specifications
| Feature | Value | Unit |
|---|---|---|
| RF Standards | LoRaWAN®, mioty®, NB-IoT, LTE-CAT-M1 | – |
| Frequency LoRaWAN® / mioty® EU | 868 | MHz |
| Cellular frequency | Band 8, Band 20 (900 MHz, 800 MHz) | MHz |
| Transmit Power LoRaWAN® / mioty® EU | 14 | dBm |
| Transmit power NB-IoT / LTE-CAT-M1 | 23 | dBm |
| LoRaWAN® MAC Layer Version | 1.0.2, 1.0.4 | – |
5. Localization of LoRaWAN Sensors
| Feature | Value | Unit |
|---|---|---|
| WiFi SSID Scan | Up to 6 MAC addresses on port 199 | – |
| WiFi SSID Scan Frequency | 2.4 | GHz |
| Wi-Fi SSID scan accuracy | 6 to 50 | m |
| GNSS | GNSS scan with GPS and BeiDou | – |
| GNSS accuracy | 10 to 100 | m |
| Antenna | Integrated | – |
| Chipset | LR1110 | – |
| Feature for on-premises indoor tracking | Configurable to transmit up to 5 MAC addresses including RSSI values within the standard uplink payload | – |
| Tracking on the LoRaWAN network | Network-dependent | – |
6. ToF (Optical) Sensor Specifications
Applies to all sensors without the SMAV option.
| Feature | Value | Unit |
|---|---|---|
| Measurement field | Up to 8 × 8 points | – |
| Field of view | Standard 27°, adjustable field of view | ° |
| Wavelength | 940 | nm |
| Measurement frequency | Up to 50 | Hz |
| Range | 2.5 standard (up to 3.5 possible) | m |
| Laser class | Class 1 | – |
| Minimum range | Standard 5 cm (up to 2 cm possible with reduced accuracy) | cm |
| Repeatability | 2 | mm |
| Lens properties | Hydrophobic and dust-repellent | – |
Applies to the following sensors: S-APOQ-XXXX-XX-XXX-SMAV
| Feature | Value | Unit |
|---|---|---|
| Rating scale | 1 point | – |
| Opening angle | 18° | ° |
| Wavelength | 940 | nm |
| Measurement frequency | Up to 50 | Hz |
| Range | 3 standard (up to 5 possible) | m |
| Laser class | Class 1 | – |
| Minimum range | Standard 10 cm (up to 2 cm possible with reduced accuracy) | cm |
| Repeatability | 2 | mm |
| Lens properties | Hydrophobic and dust-repellent | – |
7. Radar Sensor Specifications
| Feature | Value | Unit |
|---|---|---|
| Type | Pulse Doppler Radar (CPR) | – |
| Field of view | approx. 25° (plane 1), approx. 15° (plane 2) | ° |
| Frequency | 60.5 | GHz |
| Range | 2.5 standard (up to 3.5 possible) | m |
| Absolute accuracy | – | nm |
| Relative accuracy | – | µm |
8. Temperature Sensor Specifications for -ACC Sensors
| Feature | Value | Unit |
|---|---|---|
| Temperature range | −40 to +85 | °C |
| Accuracy (0 °C to +70 °C) | ±0.8 | °C |
| Accuracy (−40 °C to +85 °C) | ±1.3 | °C |
| Resolution | 1 | °C |
9. Temperature Sensor Specifications for Non-ACC Sensors
| Feature | Value | Unit |
|---|---|---|
| Temperature range | −30 to +85 | °C |
| Accuracy (0 °C to +70 °C) | ±2 | °C |
| Accuracy (−40 °C to +85 °C) | ±1.5 | °C |
| Resolution | 1 | °C |

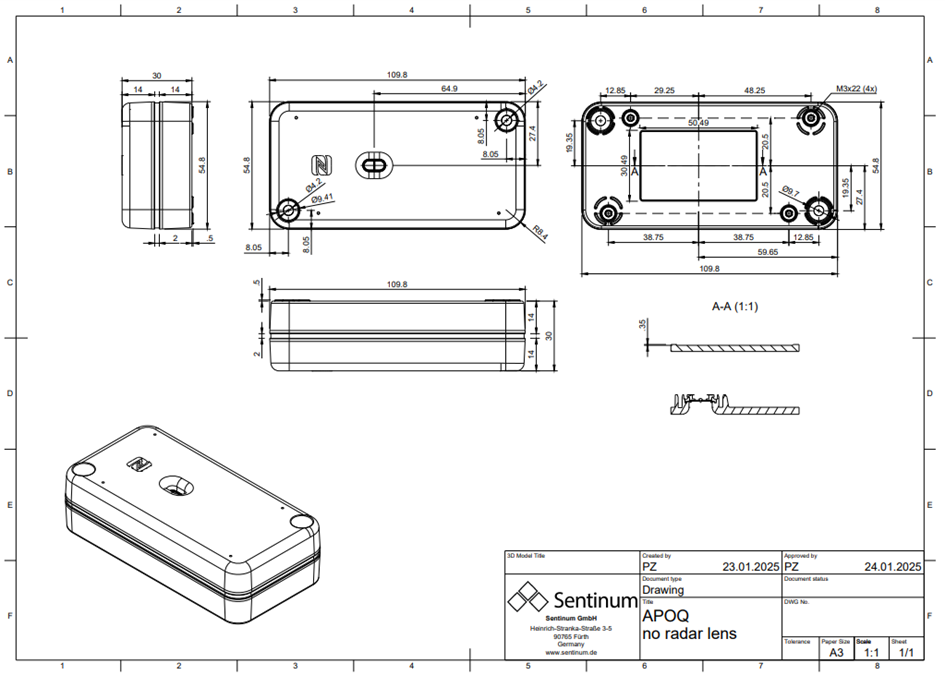

10. Technical Drawing without Radar

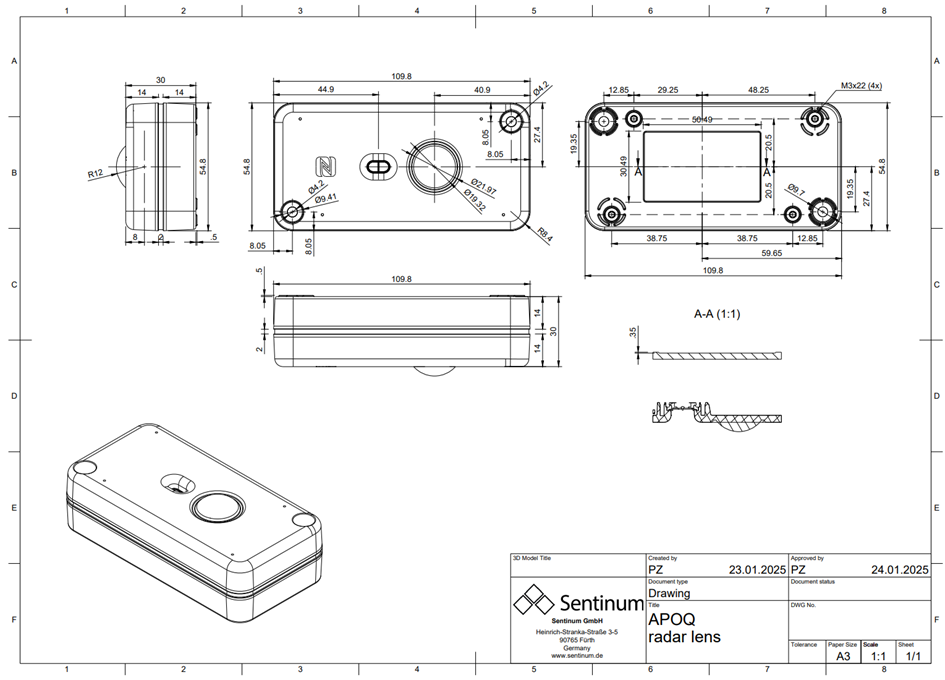

11. Technical Drawing with Radar
