Juno IX BSX Technical datasheet

Are you looking for the technical Data sheet of Juno IX BSX

here you will find the info you need 👇

📄 You can view the PDF above or download it here.

The Juno iX BSX is an industrial operating hours counter and on/off monitor with connectivity options via mioty®, LoRaWAN® , or cellular (e.g., NBIoT). It reliably records operating hours and supports the optimization of maintenance cycles by analyzing vibrations or the magnetic field in real time. Thanks to its robust construction and IP69k protection, the Juno iX BSX is ideal for demanding environments and can withstand dust, water, and high pressures.

Versions

Item Code Features
S-JUNO-IX-LOEU-BSX-BMINDUSTRIAL JUNO IP69k operating hours counter with magnetic field sensor LoRaWAN®
S-JUNO-IX-MIOTY-BSX-BMINDUSTRIAL JUNO IP69k operating hours counter with magnetic field sensor mioty®
S-JUNO-IX-NBM1-BSX-BMINDUSTRIAL JUNO IP69k operating hours counter with magnetic field sensor Cellular
S-JUNO-IX-LOEU-BSX-BM-THINDUSTRIAL JUNO IP67 operating hours counter and TH sensor (temperature and relative humidity) with magnetic field sensor LoRaWAN® – only available on request and MOQ –
S-JUNO-IX-MIOTY-BSX-BM-THINDUSTRIAL JUNO IP67 operating hours counter and TH sensor (temperature and relative humidity) with magnetic field sensor mioty® – only available on request and MOQ –
S-JUNO-IX-NBM1-BSX-BM-THINDUSTRIAL JUNO IP67 operating hours counter and TH sensor (temperature and relative humidity) with magnetic field sensor Cellular – only available on request and MOQ –
S-JUNO-IX-LOEU-BSXINDUSTRIAL JUNO IP69k operating hours counter and TH sensor (temperature and relative humidity) with magnetic field sensor LoRaWAN®
S-JUNO-IX-MIOTY-BSXINDUSTRIAL JUNO IP69k operating hours counter with vibration and magnetic field sensor mioty®
S-JUNO-IX-NBM1-BSXINDUSTRIAL JUNO IP69k operating hours counter with vibration and magnetic field sensor Cellular
S-JUNO-IX-LOEU-BSX-THINDUSTRIAL JUNO IP67 operating hours counter with vibration and magnetic field sensor LoRaWAN® – only available on request and MOQ –
S-JUNO-IX-MIOTY-BSX-THINDUSTRIAL JUNO IP67 operating hours counter with vibration and magnetic field sensor mioty® – only available on request and MOQ –
S-JUNO-IX-NBM1-BSX-THINDUSTRIAL JUNO IP67 operating hours counter with vibration and magnetic field sensor Cellular – only available on request and with MOQ –

General Features

Feature Value Unit
Dimensions (L×W×H)86×86×25mm
Weight<200g
Operating temperature-25 to +75 (please inquire about extended temperature range. Temperature range is limited by the maximum operating temperature of the primary cells)°C
Maximum operating temperature (device)85°C
Storage temperature (recommended)15 to +30°C
Relative humidity during operation5 to 99%RH
IP ratingIP69k (TH version IP67)
IK ratingTBD
SensorsMagnetic field sensor, ADVANCED acceleration sensor, temperature, relative humidity (optional), activity sensor
Traffic light functionNo
Acoustic alarm functionYes, buzzer
ProvisioningNFC/BLE
MaterialPBT GF20
NFC/BLE antennaIntegrated
RF antennaIntegrated
AccelerometerYes
BatteriesPrimary cell, replaceable, AA
Primary cell type LoRaWAN, mioty:
• 2 × 3.6V LiSOCl₂ (SAFT LS14500 recommended)

Cellular:
• 2 × 3V LiMnO₂ spiral AA cell
• 2 × 3.6V LiSOCl₂ spiral AA cell
Housing colorS-JUNO-IX-XXXX silk gray

Connectivity and RF Specification

Feature Value Unit
RF standardsMHz
Frequency LoRaWAN®/mioty® EU868MHz
Frequency Mobile communicationsBand 8, 20 (900 MHz, 800 MHz)dBm
Transmission power LoRaWAN®/mioty® EU14dBm
Transmission power NB-IoT23dBm
LoRa® MAC layer version1.0.4

Magnetic Field Sensor

Feature Value Unit
Axes3
Measuring range±2000µT
Resolution0.1µT
Noise450nT RMS

Vibration Sensor

Feature Value Unit
Measuring range (FS)±2 / ±4 / ±8 / ±16g
BandwidthUp to 6.3kHz
ODR26667kHz
Sensitivity0.061 (±2 g), 0.122 (±4 g), 0.244 (±8 g), 0.488 (±16 g)g
Zero g offset±60g

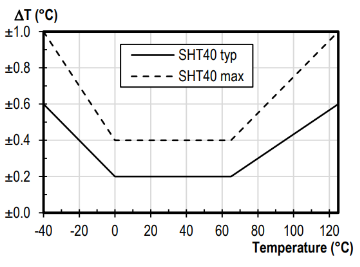

Sensor Specifications Temperature

Feature Value Unit
Measuring range-40 to +125°C
Drift (long-term)<0.03°C/year
Accuracy±0.2°C
Resolution0.1°C
Repeatability0.2°C

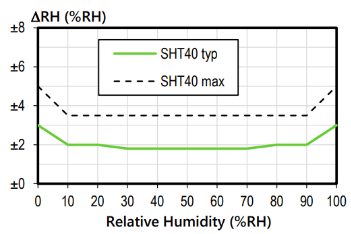

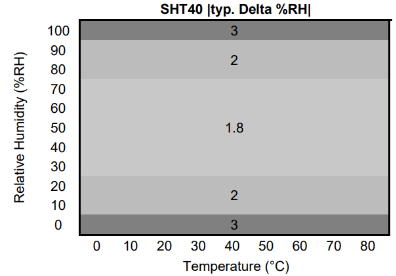

Sensor Specification Relative Humidity

Feature Value Unit
Measuring range0 to +100%RH
Drift (long-term)<0.25%RH/year
Accuracy±1.8%RH
Resolution1%RH
Repeatability0.25%RH

More accurate temperature sensors available on request.

Sensor Specification Temperature Acceleration Sensor

Feature Value Unit
Measuring range-40 to +85°C
Accuracy±0.8°C

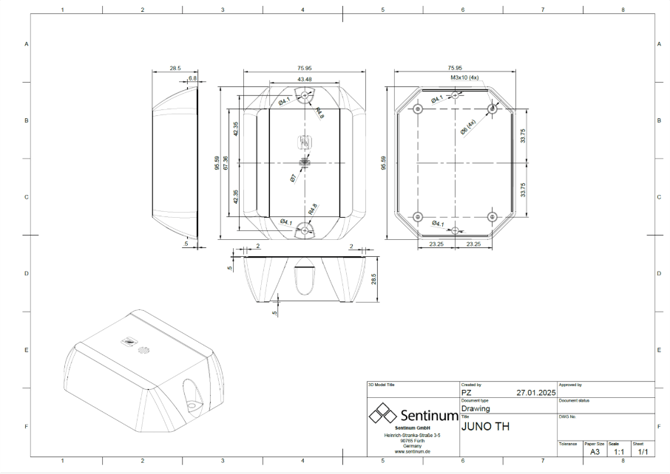

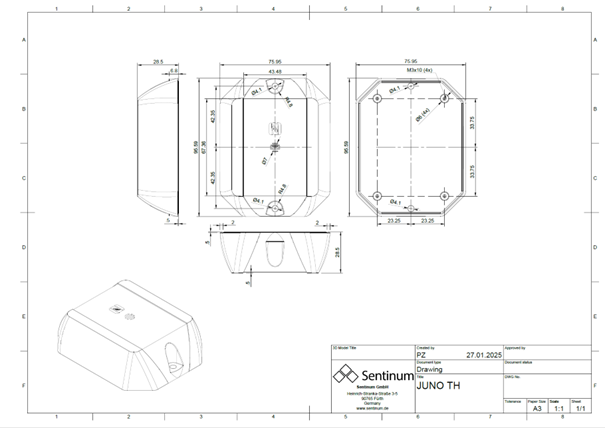

Technical Drawing

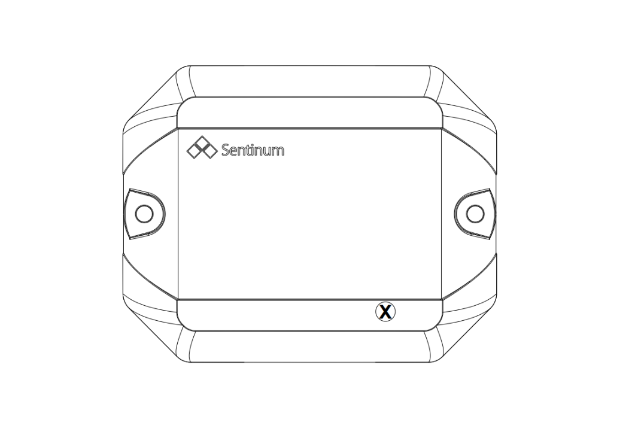

Position of magnetic switch

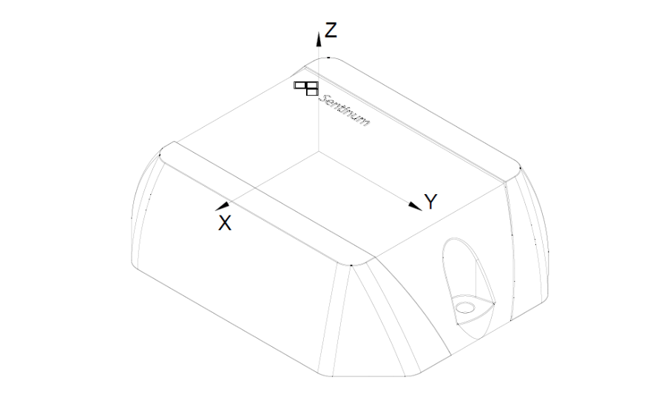

orientation of the axes acceleration sensor

Specifications subject to change without notice. All information provided without guarantee.
