      Nyx Quick start guide

      You are looking for the Nyx Quick Start Guide ?

      You can find the Quickstart Guide for the Nyx here 👉

      Nyx-Folie2 2 1 (2)

      Please observe the warnings and instructions in the operating instructions to ensure the safety of you, your surroundings and the sensor!

      ASSEMBLY AND INSTALLATION

      First install the wall mount on an interior wall at a height of between 1.50m and 1.80m, in a well-lit location with at least 400Lux per day. Make sure that the sensor is at least 20cm away from people and in an area below 2000m above sea level. Use either the supplied adhesive strips or suitable screws to attach the sensor. Then insert the sensor into the wall bracket until it clicks securely into place and put it into operation.

      NFC Parameterization and position of the  NFC TAG

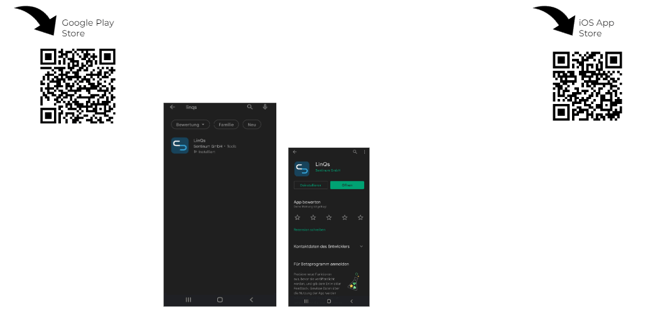

      1. The sensor is supplied already switched on. It is activated via an NFC app. A smartphone is required for this. The app can be downloaded from the respective app stores. Simply search
        for “Sentinum LinQs” and download the LinQs app.
      2. Locate the tag on the sensor first and then the reader on your device. The position of the NFC tag can be found in the following pictures.

      Form

      Nyx-Aktuelle frei (1)

      Playload Decoder  NYX Series

      function decodeUplink(input) {



          var decoded = {};

          var bytes = input.bytes;



          if (input.fPort == 1) { //TELEMETRY



              //decode header

              decoded.base_id = bytes[0] >> 4;

              decoded.major_version = bytes[0] & 0x0F;

              decoded.minor_version = bytes[1] >> 4;

              decoded.product_version = bytes[1] & 0x0F;

              decoded.up_cnt = bytes[2];

              decoded.battery_voltage = ((bytes[3] << 8) | bytes[4]) / 1000.0;

              decoded.internal_temperature = ((bytes[5] << 8) | bytes[6]) / 10 - 100;

              decoded.networkBaseType = 'lorawan';

              decoded.networkSubType = 'tti';

              var it = 7;

              if (decoded.major_version >= 1) {

                  it = 7;

                  //Luftfeuchte ist bei allen Varianten enthalten

                  decoded.humidity = bytes[it++];

                  decoded.dew_point = ((bytes[it++] << 8) | bytes[it++]) / 10 - 100;

                  decoded.alarm_level = bytes[it++]; //Alarm-Level, entspricht grün, gelb, rot



                  if (decoded.product_version & 0x01) { //  Lux Sensor

                      var raw_lux = (bytes[it++] << 8 | bytes[it++]);

                      // decoded.lux_status = raw_lux != 0xffff ? 0 : 1; //raw value is 0xFFFF in case of error

                      decoded.lux = (1 << (raw_lux >> 12)) * (raw_lux & 0x0FFF) * 0.01;

                  }



                  if (decoded.product_version & 0x04) { //  Has Bme688 Sensor

                      decoded.bme_status = bytes[it++];

                      decoded.pressure = (bytes[it++] << 8 | bytes[it++]);

                      if (decoded.product_version & 0x02) { // Has IAQ Feature

                          decoded.iaq_status = bytes[it++];

                          decoded.iaq_index = (bytes[it++] << 8 | bytes[it++]);

                      }

                  }

              }

          }



          return {

              data: decoded,

              warnings: [],

              errors: []

          };



      }
