1. Versions
| Article Code | Features |
|---|---|
| S-AION-MIOTY | Aion IO-Link mioty Adapter |
2. General Properties
| Feature | Value | Unit |
|---|---|---|
| Dimensions (l×b×h) | 63 × 24 × 32 | mm |
| Weight | 90 | g |
| Operating temperature | −25 to +60 | °C |
| Maximum operating temperature device | 60 | °C |
| Storage temperature (recommended) | −25 to +60 | °C |
| Rel. humidity during operation | 5 to 99 | %RH |
| IP Rating | IP69k | |
| Suitable for outdoor use | No | |
| IK Rating | – | |
| Sensors | – | |
| Optical display | Yes (LEDs: Status LED red, Operation LED green) | |
| Acoustic output | No | |
| Provisioning | – | |
| Materials | PA, 1.4404 (stainless steel/316L), brass (2.0401), PBT, FKM; seal: FKM | |
| NFC antenna | – | |
| RF antenna | Integrated | |
| Accelerometer | – | |
| Batteries | – | |
| Primary cell type | – | |
| Energy supply | External supply | |
| Housing color | Black | |
| RF interfaces | mioty® | |
| Communication interfaces | IO-LINK |
3. Electrical Data
| Characteristic | Value | Unit |
|---|---|---|
| Operating voltage | 18 to 30 | V DC |
| Nominal voltage | 24 | V DC |
| Power consumption | 100 | mA |
| Protection class | III | |
| Reverse polarity protection | Yes |
4. Connectivity and RF Specification
| Characteristic | Value | Unit |
|---|---|---|
| RF Standards | mioty® | |
| Frequency mioty® EU | 868 | MHz |
| Transmission power mioty® EU | 14 | dBm |
| Further communication interfaces | IO-LINK |

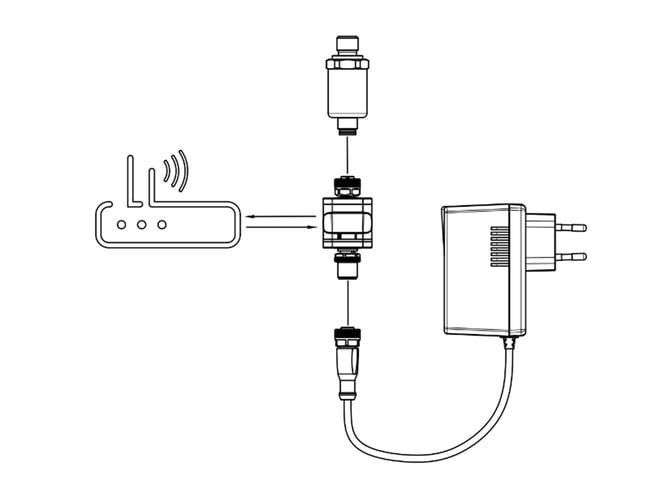

5. Operating Mode

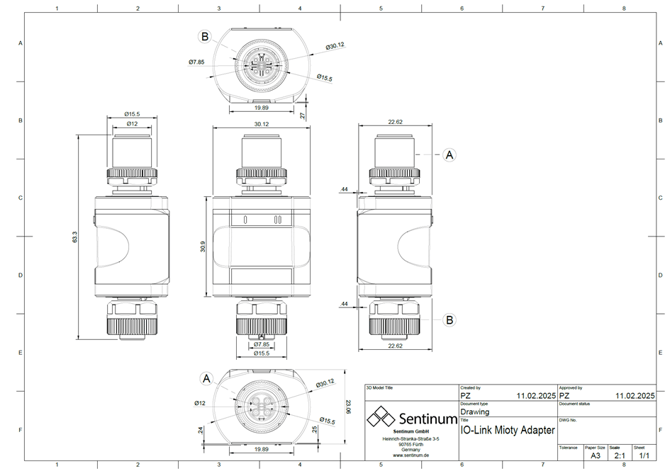

6. Technical Drawing

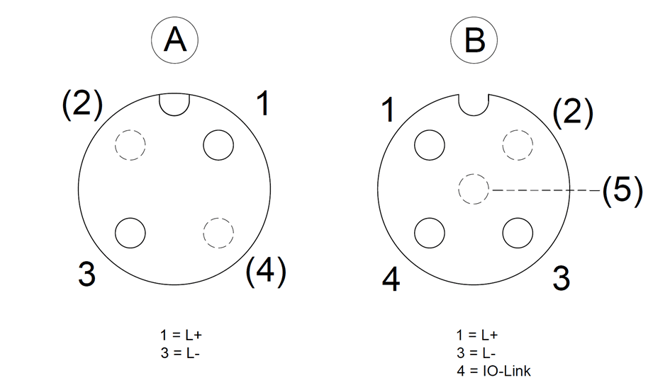

7. Electrical Connections
