1. Overview
The Apollon-Q series offers wireless IoT level sensors with high-quality results thanks to a unique optical and radar measurement principle. They measure levels up to 2.50 meters for piece, liquid or bulk goods and are versatile for various applications including bins, chutes, channels and small containers such as waste baskets. With optimized range, short measurement and transmission intervals and support for MIOTY®, NB-IoT, LoRaWAN® and LTE-CAT-M1, they offer advanced functionalities.
2. Versions
| Prefix | Code product series | Communikation | Sensors | Add. Sensors | Examples |
|---|---|---|---|---|---|
| S | (i)APOQ | LOEU, MIOTY, NB, NBM1 | PP‑T1 | ACC | S‑APOQ‑LOEU‑PP‑T1‑ACC |
3. Lifetime Estimation
| Transmissions per day | 6 | 4 | 2 |
|---|---|---|---|
| LoRaWAN® SF12 Energizer Ultimate Lithium | 5 | 5 | 5 |
| LoRaWAN® SF7 Energizer Ultimate Lithium | 4.5 | 4.5 | 5 |
| mioty® Energizer Ultimate Lithium | 4.5 | 5 | 5 |
| NB‑IoT best case (60 µWh/transmission) | 4 | 4 | 4 |
| NB‑IoT average case (250 µWh/transmission) | 3.5 | 4 | 4 |
| NB‑IoT worst case (1000 µWh/transmission) | 2 | 2.5 | 2.5 |
4. General Properties
| Feature | Value | Unit |
|---|---|---|
| Dimensions (L × W × H) | 109 × 53 × 33 | mm |
| Weight | 160 | g |
| Operating temperature | -30 to 75 (up to 85 °C or 125 °C on request, depending on battery type) | °C |
| Storage temperature (recommended) | 15 to 25 | °C |
| Relative humidity (operation) | 5 to 99 | % |
| IP rating | IP69k | |
| Distance sensing | ToF (optical) and/or radar | |
| Traffic light function | – | |
| Acoustic alarm | – | |
| Provisioning | NFC | |
| Material | Glass fiber reinforced PBT (PBT‑GB‑20) | |
| NFC antenna | Integrated | |
| RF antenna | Integrated | |
| Accelerometer | Optional for lid opening detection and vandalism detection | |
| Batteries | Replaceable | |
| Primary cell type |
LoRaWAN / mioty: 2 × 1.5 V (recommended: Energizer Ultimate Lithium) or LiSOCl₂ (LS14500, Saft) upon request NB‑IoT / LTE‑M: 2 × 3 V (recommended: LiMnO₂ Varta CR AH‑R) |
5. Connectivity and RF Specifications
| Feature | Value | Unit |
|---|---|---|
| RF standards | ||
| Frequency LoRaWAN® / mioty® EU | 868 | MHz |
| Cellular frequency | Band 8, 20 (900 MHz, 800 MHz) | MHz |
| Transmit power LoRaWAN® / mioty® EU | 14 | dBm |
| Transmit power NB‑IoT | 23 | dBm |
| LoRa® MAC layer version | 1.0.2 |
6. Sensor Specification ToF (Optical)
| Feature | Value | Unit |
|---|---|---|
| Measuring field | Up to 16 × 16 points | |
| Opening angle | Standard 27° – opening angle adjustable | ° |
| Wavelength | 940 | nm |
| Measuring frequency | Up to 50 | Hz |
| Measuring range | 2.50 meters standard (up to 3.50 m possible) | m |
| Laser class | Class 1 | |
| Minimum range | Standard 5 cm (up to 2 cm with lower accuracy possible) | cm |
| Repeatability | 2 | mm |
| Lens properties | Hydrophobic and dust‑repellent |
7. Sensor Specification Radar
| Feature | Value | Unit |
|---|---|---|
| Kind | Pulse Radar (CPR) | |
| Opening angle | Approx. 25° plane 1, approx. 15° plane 2 | ° |
| Frequency | 60.5 | GHz |
| Range | 2.50 meters standard (up to 3.50 m possible) | m |
| Absolute accuracy | nm | nm |
| Relative accuracy | µm | µm |
8. Sensor Specification Temperature for ‑ACC Sensors
| Feature | Value | Unit |
|---|---|---|
| Temperature range | -40 to +85 | °C |
| Accuracy 0 °C to 70 °C | ±0.8 | °C |
| Accuracy -40 °C to +85 °C | ±1.3 | °C |
| Resolution | 1 | °C |
9. Sensor Specification Temperature for Non‑ACC Sensors
| Feature | Value | Unit |
|---|---|---|
| Temperature range | -30 to +85 | °C |
| Accuracy 0 °C to 70 °C | ±2 | °C |
| Accuracy -40 °C to +85 °C | ±1.5 | °C |
| Resolution | 1 | °C |

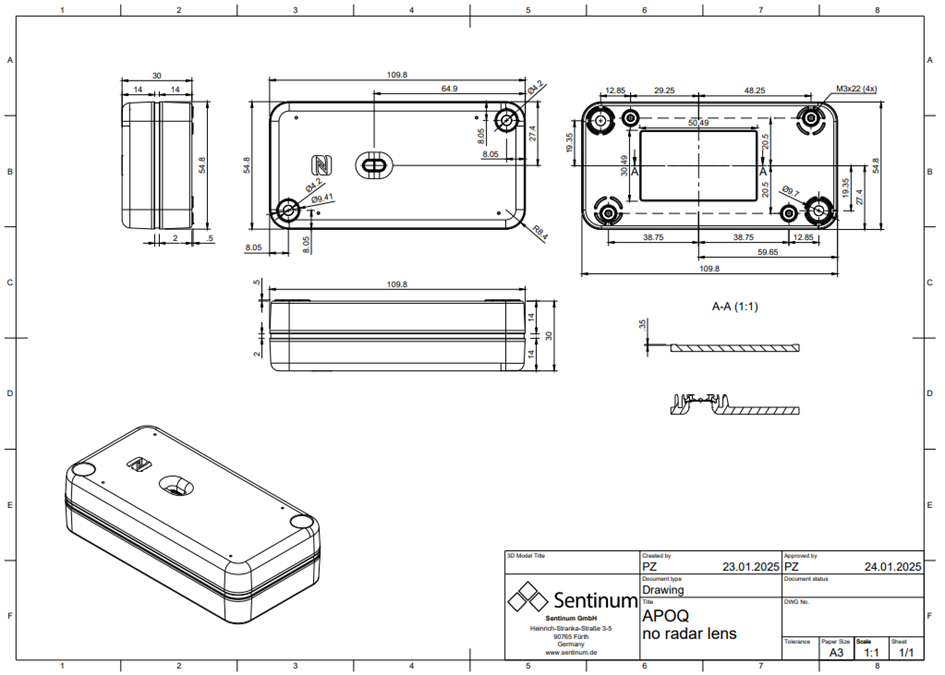

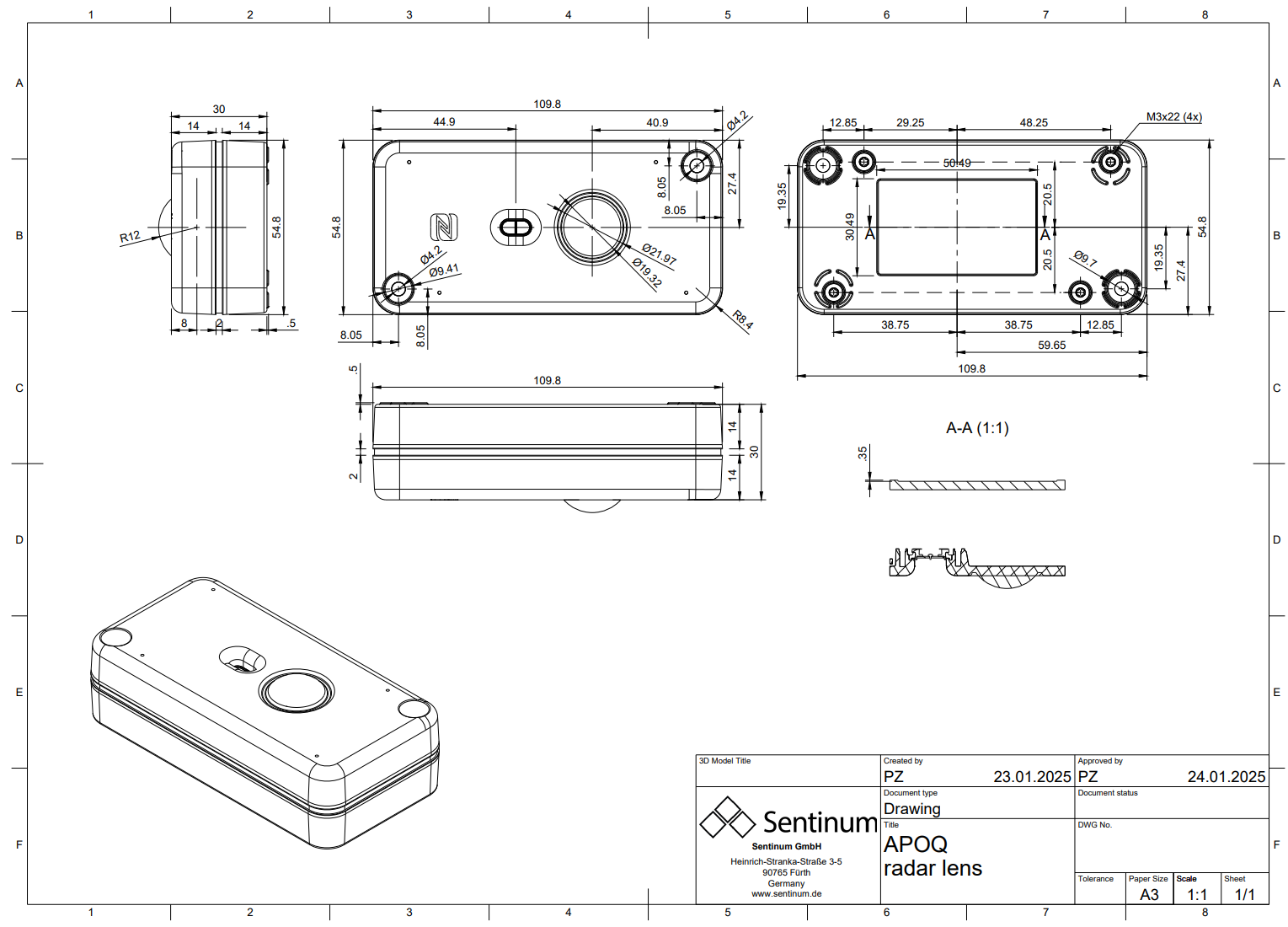

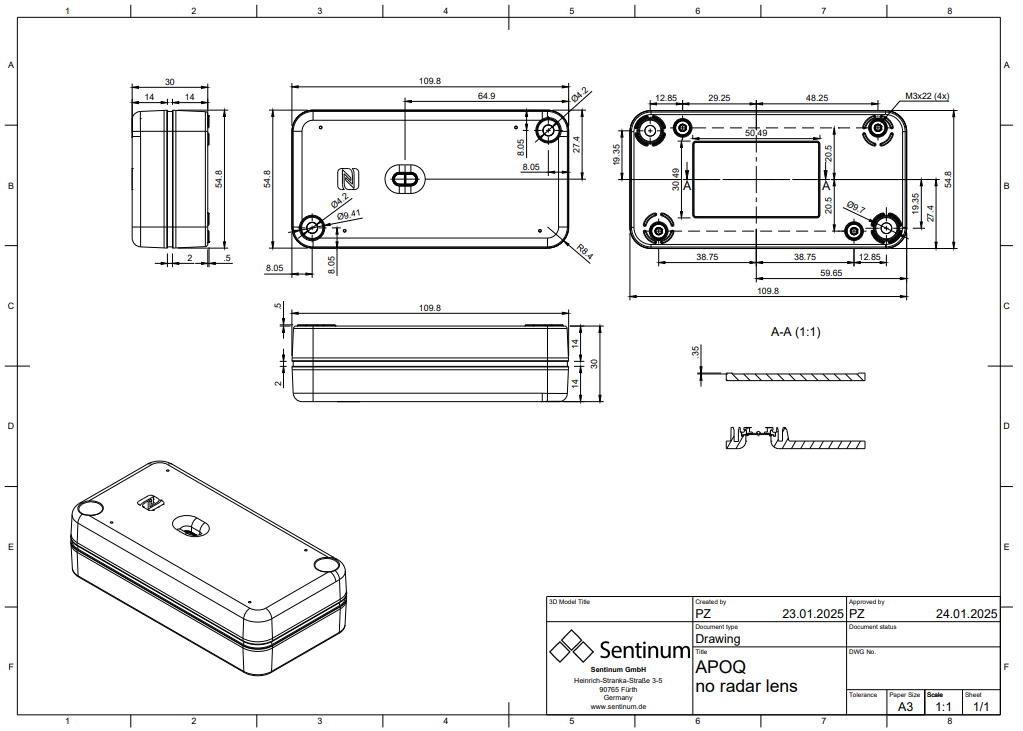

10. Technical Drawings
