Helios-P Pressure Sensor
      Back to home
      1. Help-Desk
      2. Sensors & Product Lines
      3. Helios-P Pressure Sensor

      Helios-P Technical Data Sheet

      Are you looking for the technical data sheet for the Helios-P pressure sensor?

      Helios-P LoRaWAN (1)

      Helios-P Article Codes

      Article code

      		 Sensors Maximum pressure (bar) Communi-cation Electricity supply Status
      S-HELI-LOEU-P-10-BAT Pressure Transmitter 10 LoRaWAN® Battery In Production
      S-HELI-LOEU-P-60-BAT Pressure Transmitter 60 LoRaWAN® Battery In Production
      S-HELI-LOEU-P-100-BAT Pressure Transmitter 100 LoRaWAN® Battery In Production
      S-HELI-LOEU-P-450-BAT Pressure Transmitter 450 LoRaWAN® Battery In Production
      S-HELI-MIOTY-P-10-BAT Pressure Transmitter 10 mioty® Battery In Production
      S-HELI-MIOTY-P-60-BAT Pressure Transmitter 60 mioty® Battery In Production
      S-HELI-MIOTY-P-100-BAT Pressure Transmitter 100 mioty® Battery In Production
      S-HELI-MIOTY-P-450-BAT Pressure Transmitter 450 mioty® Battery In Production
      S-HELI-NB-P-10-BAT Pressure Transmitter 10 NB-IoT+LTE-CAT-M1 Battery In Production
      S-HELI-NB-P-60-BAT Pressure Transmitter 60 NB-IoT+LTE-CAT-M1 Battery In Production
      S-HELI-NB-P-100-BAT Pressure Transmitter 100 NB-IoT+LTE-CAT-M1 Battery In Production
      S-HELI-NB-P-450-BAT Pressure Transmitter 450 NB-IoT+LTE-CAT-M1 Battery In Production
      S-HELI-LOEU-P-10-NET Pressure Transmitter 10 LoRaWAN® Power supply In Production
      S-HELI-LOEU-P-60-NET Pressure Transmitter 60 LoRaWAN® Power supply In Production
      S-HELI-LOEU-P-100-NET Pressure Transmitter 100 LoRaWAN® Power supply In Production
      S-HELI-LOEU-P-450-NET Pressure Transmitter 450 LoRaWAN® Power supply In Production
      S-HELI-MIOTY-P-10-NET Pressure Transmitter 10 mioty® Power supply In Production
      S-HELI-MIOTY-P-60-NET Pressure Transmitter 60 mioty® Power supply In Production
      S-HELI-MIOTY-P-100-NET Pressure Transmitter 100 mioty® Power supply In Production
      S-HELI-MIOTY-P-450-NET Pressure Transmitter 450 mioty® Power supply In Production
      S-HELI-NB-P-10-BAT Pressure Transmitter 10 NB-IoT+LTE-CAT-M1 Power supply In Production
      S-HELI-NB-P-10-BAT Pressure Transmitter 60 NB-IoT+LTE-CAT-M1 Power supply In Production
      S-HELI-NB-P-10-BAT Pressure Transmitter 100 NB-IoT+LTE-CAT-M1 Power supply In Production
      S-HELI-NB-P-10-BAT Pressure Transmitter 450 NB-IoT+LTE-CAT-M1 Power supply In Production
      Z-ADAP-14-12 Accessories       In Production
      Z-ADAP-14-12 Accessories       In Production

      Helios-P Order Tree

      Prefix Code Product- range Communication Sensors Pressurerange (bar) Electricity supply Example
      S HELI mioty, LOEU, NB P 10, 100, 400, 60 BAT, NET S-HELI-LOEU-P-100-BAT

      Presets/Default values in the delivery state

      Name

      For communi-cation protocol

      		 Description Unit Default value
      Measurement period All Specifies the period in which the measured values are recorded. 10 minutes means that a measurement is carried out by the sensor every 10 minutes. min 5
      Delta value All Specifies how much the level must change in absolute terms compared to the last shipment in order for an ALARM shipment to be triggered. This transmission is carried out independently of the normal transmission interval. Always refers to the main reading. mbar 100
      Regular transmission interval All Number of measurements after the sensor plans an uplink despite the absence of an alarm condition. Number 2
      Warning temperature low All Limit value in °C above which an alarm is triggered due to a low temperature. °C 4
      Warning temperature high All Limit value in °C, from which an alarm transmission is triggered due to a too high temperature first limit value temperature high). °C 55
      Warning temperature critical All Limit value in °C above which an alarm transmission is triggered due to too high a critical temperature (second limit value temperature high). °C 55
      Warning pressure low All Limit value in mbar above which an alarm is triggered due to under-pressure. mbar 8000
      Warning pressure high All Limit value in mbar from which an alarm is triggered due to excessive pressure (first limit value pressure high). mbar 200
      Warning pressure critical All Limit value in mbar at which an alarm transmission is triggered due to too high critical pressure (second limit value pressure high, critical pressure reached). mbar 8000
      Group Sensor Settings
      Group Timings & Alarm

      Standard specifications

      Characteristics
      Value
      		 Unit
      Dimensions lxbxh
      152x81x45
      mm
      Weight
      266
      g
      Operating temperature
      -30 bis +85
      °C
      Storage temperature (recommended)
      +12 bis +26
      °C
      Rel. Humidity in operation
      0 - 100
      %
      IP Rating
      IP66

      Sensors
      Pressure

      Traffic light function
      -

      Alarm function audible
      -

      Provisioning
      NFC

      Material
      ABS/PC

      NFC antenna
      integrated

      RF antenna
      internal

      Accelerometer
      -

      Other sensors
      -

      Cable length
      2
      m
      Cable material
      PVC

      Type of connection
      Plug

      Batteries
      exchangeable

      Primary cell type
      4AA (recommended Lithium Ultimate AA Energizer or Varta Ultra Lithium AA)


      Connectivity and RF Specifications

      Characteristics Value Unit
      RF Standards

      Frequency LoRaWAN®/mioty® EU
      868
      MHz
      Frequency Cellular
      Volume 8, 20 (900 MHz, 800MHz)
      MHz
      Transmission power LoRaWAN/mioty EU
      114
      dBm
      Transmission power NB-IoT
      23
      dBm
      LoRa MAC Layer Version
      1.0.2












      Sensor Specification Pressure sensor (10 bar)*

      Characteristics Value Unit
      Type of printing
      Relative pressure

      Field of application
      Liquid and gaseous media, refrigerants, ammonia

      Pressure measuring range Min.
      Volume 8, 20 (900 MHz, 800MHz)
      MHz
      Pressure measuring range Max.
      114
      dBm
      Compressive strength
      23
      dBm
      Process connection
      1.0.2

      Ambient temperature Min.
      -30
      °C
      Ambient temperature Max.
      85
      °C
      Medium temperature
      -30 - 135
      °C
      Type of protection
      IP67

      Dissolution
      1
      mbar
      Accuracy
      20
      mbar
      Long-term stability
      ± 0,25 % FS

      Temperature behaviour
      ± 0,2 % FS / 10K
      Kelvin
      Materials in contact with the medium
      V4A


      *for further maximum pressures please request data sheets

      Cable specification

      Characteristics Value Unit
      Specification
      M12 Sensor plug

      Pressure gauge cable
      4,5
      mm
      Material cable
      PVC

      Material sheath
      PVC

      Tightening torque overthrow nut
      0,6 - 1,5
      Nm
      Temperature min.
      - 25
      °C
      Temperature max.
      70
      °C













      **IP69k cable with PUR material please inquire

      Service life

      Characteristics Value Unit
      Measurement frequency
      288
      per day (24h)
      Primary cell Energizer Ultimate Lithium Energizer Ultimate Lithium





      Number of shipments per day 96 48 24 12 6 2
      LoRaWAN® SF7 (@5,3µWh)
      10
      10
      10
      10
      10
      10
      LoRaWAN® SF12 (@100µWh)
      4
      7
      10
      10
      10
      10
      mioty® (80µWh)
      4,8
      8,2
      10
      10
      10
      10
      Cellular NB-IoT, LTE-CAT-M1 (good case signal strength) @70µWh @CSQ~
      5,4
      8,9
      10
      10
      10
      10
      Cellular NB-IoT, LTE-CAT-M1 (avg case signal strength) @250µWh @CSQ~
      1,7
      3,3
      5,9
      9,6
      10
      10
      Cellular NB-IoT, LTE-CAT-M1 (worse case signal strength) @1100µWh @CSQ~
      0,4
      0,8
      1,6
      3,0
      5,5
      10

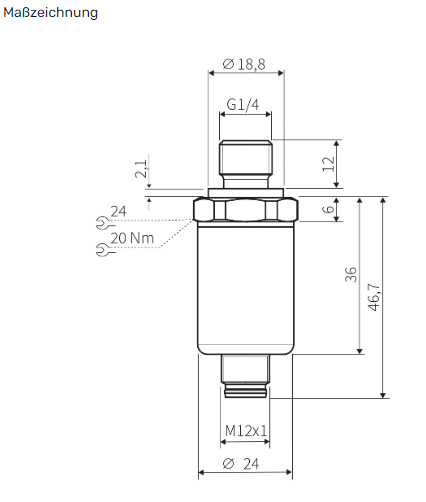

      Technical drawing

      TBD

      Labelling and certification

      Untitled (85)     Untitled (86)



      Documentation Links

      You can find the links for the other Helios-P documentation here:
