Juno TH TILT technical data sheet
Are you looking for the Juno TH TILT technical data sheet
📄 You can view the PDF above or
download it here.
Version
| Article Code | Features |
|---|---|
| S-JUNO-LOEU-TH | JUNO IP67 TH sensor, temperature and relative humidity with tilt detection and opening detection LoRaWAN |
| S-JUNO-MIOTY-TH | JUNO IP67 TH sensor, temperature and relative humidity with tilt detection and opening detection mioty |
| S-JUNO-NB-TH | JUNO IP67 TH sensor, temperature and relative humidity with tilt detection and opening detection NB-IoT, LTE-CAT-M1 |
| S-JUNO-IX-LOEU-TH | INDUSTRIAL JUNO IP67 TH sensor, temperature and relative humidity with tilt detection and opening detection LoRaWAN |
| S-JUNO-IX-MIOTY-TH | INDUSTRIAL JUNO IP67 TH sensor, temperature and relative humidity with tilt detection and opening detection mioty |
| S-JUNO-IX-NB-TH | INDUSTRIAL JUNO IP67 TH sensor, temperature and relative humidity with tilt detection and opening detection NB-IoT, LTE-CAT-M1 |
General Properties
| Feature | Value | Unit |
|---|---|---|
| Dimensions lxbxh | 86x86x25 | mm |
| Weight | <200 | g |
| Operating temperature | -25 to +75 (extended temperature range on request. Temperature range is limited by the maximum operating temperature of the primary cells) | °C |
| Maximum operating temperature Device | 85 | °C |
| Storage temperature (recommended) | 15 to +30 | °C |
| Rel. humidity during operation | 5 to 99 | %RH |
| IP Rating | IP67/IP65 | |
| IK Rating | TBD | |
| Sensors | Temperature, relative humidity, acceleration sensor | |
| Traffic light function | no | |
| Audible alarm function | Yes, buzzer | |
| Provisioning | NFC | |
| Material | PBT GF20 + ASA | |
| NFC antenna | Integrated | |
| RF antenna | Integrated | |
| Accelerometer | Yes | |
| Batteries | Primary cell, replaceable, AA | |
| Primary cell type |
LoRaWAN, mioty: • 2 x 3.6V LiSOCl2 (recommended SAFT LS14500) Cellular: • 2 x 3V LiMnO2 spiral AA cell • 2 x 3.6V LiSOCl2 spiral AA cell |
|
| Housing color |
S-JUNO-XXXX black S-JUNO-IX-XXXX silk grey |
Connectivity and RF Specification
| Feature | Value | Unit |
|---|---|---|
| RF Standards | MHz | |
| Frequency LoRaWAN®/mioty® EU | 868 | MHz |
| Mobile radio frequency | Band 8, 20 (900 MHz, 800 MHz) | dBm |
| Transmission power LoRaWAN®/mioty® EU | 14 | dBm |
| Transmission power NB-IoT | 23 | dBm |
| LoRa® MAC layer version | 1.0.4 |
Sensor Specification Temperature
| Feature | Value | Unit |
|---|---|---|
| Measuring range | -40 to +125 | °C |
| Drift (long-term) | <0,03 | °C/year |
| Accuracy | +/-0,2 | °C |
| Resolution | 0,1 | °C |
| Repeatability | 0,2 | °C |
Sensor Specification Rel. Humidity
| Feature | Value | Unit |
|---|---|---|
| Measuring range | 0 to +100 | %RH |
| Drift (long-term) | <0,25 | %RH/year |
| Accuracy | +/-1,8 | %RH |
| Resolution | 1 | %RH |
| Repeatability | 0,25 | %RH |
More accurate temperature sensors available on request.
Sensor Specification Inclination
| Feature | Value | Unit |
|---|---|---|
| Measuring range | 0 to 360 | ° |
| Accuracy | +/-2° | ° |
| Triggering in low power mode for opening detection | +/-60 | ° |
Sensor Specification Temperature Acceleration Sensor
| Feature | Value | Unit |
|---|---|---|
| Measuring range | -40 to +85 | °C |
| Accuracy | +/- 0,8 | °C |

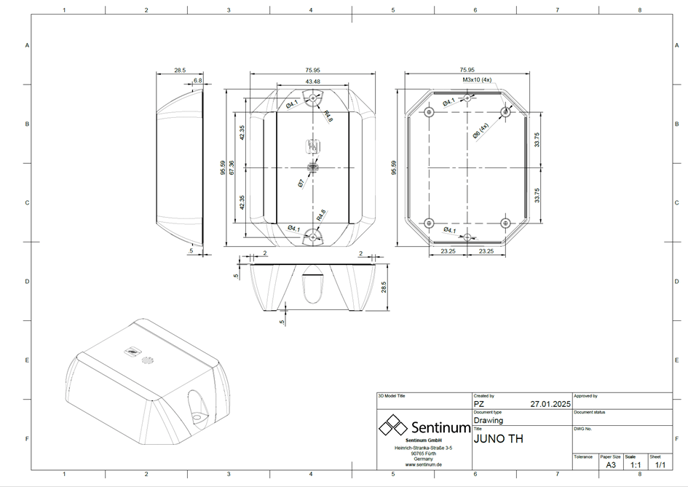

Technical drawing
Position magnetic switch

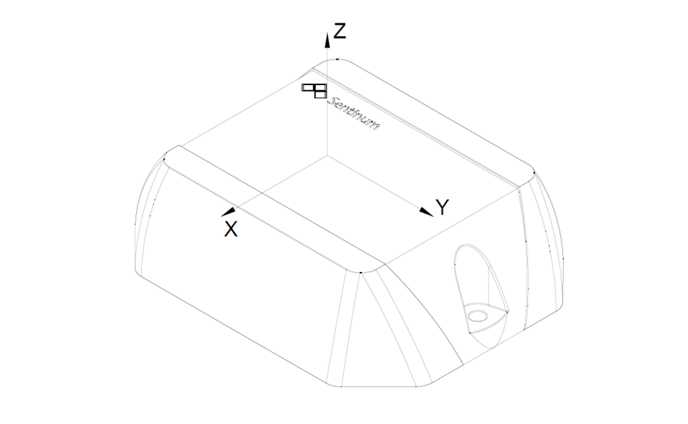

Orientation of the axes acceleration sensor
Specifications subject to change without notice. All information provided without guarantee.
