1. Version History
| Version | Date | Revision |
|---|---|---|
| 1.0.0 | 18.02.2025 | Creation |
| 1.0.1 | 24.04.2026 |
|
2. Overview
The Juno Tracker is a versatile tracker that uses mioty®, LoRaWAN® or cellular technologies such as NB-IoT and LTE-CAT-M1 for reliable and energy-efficient data transmission. The tracker is also available in different versions, e.g. for cold chain monitoring. Thanks to its robust design and IP69k/IP67 rating, it is ideal for use in demanding environments and can withstand dust, water and high pressures.
3. Versions
| Article Code | Features |
|---|---|
| S-JUNO-LOEU-TRACK | JUNO Tracker with tilt and activity detection and opening detection LoRaWAN®, GNSS Scan, WIFI SSID Scan |
| S-JUNO-MIOTY-TRACK | JUNO Tracker with tilt and activity detection and opening detection mioty®, GNSS Scan, WIFI SSID Scan |
| S-JUNO-iX-LOEU-TRACK | INDUSTRIAL JUNO Tracker with tilt and activity detection and opening detection LoRaWAN®, GNSS Scan, WIFI SSID Scan |
| S-JUNO-iX-MIOTY-TRACK | INDUSTRIAL JUNO Tracker with tilt and activity detection and opening detection mioty®, GNSS Scan, WIFI SSID Scan |
| S-JUNO-LOEU-TH-TRACK | JUNO IP67 TH Tracker, temperature and relative humidity with tilt and activity detection and LoRaWAN® opening detection |
| S-JUNO-MIOTY-TH-TRACK | JUNO IP67 TH Tracker, temperature and relative humidity with tilt and activity detection and opening detection mioty® |
| S-JUNO-IX-LOEU-TH-TRACK | INDUSTRIAL JUNO IP67 TH Tracker, temperature and relative humidity with tilt and activity detection and LoRaWAN® opening detection |
| S-JUNO-IX-MIOTY-TH-TRACK | INDUSTRIAL JUNO IP67 TH Tracker, temperature and relative humidity with tilt and activity detection and opening detection mioty® |
| S-JUNO-NBM1-TRACK-2 | JUNO Tracker with tilt and activity detection and opening detection NB-IoT, LTE-CAT-M1, GNSS, WIFI SSID Scan, with SIM card slot, two batteries |
| S-JUNO-NBM1-TRACK-3 | JUNO Tracker with tilt and activity detection and opening detection NB-IoT, LTE-CAT-M1, GNSS, WIFI SSID Scan, with on board SIM, three batteries |
| S-JUNO-IX-NBM1-TRACK-2 | INDUSTRIAL JUNO tracker with tilt and activity detection and opening detection NB-IoT, LTE-CAT-M1, GNSS, WIFI SSID scan, with SIM card slot, two batteries |
| S-JUNO-IX-NBM1-TRACK-3 | INDUSTRIAL JUNO Tracker with tilt and activity detection and opening detection NB-IoT, LTE-CAT-M1, GNSS, WIFI SSID Scan, with on board SIM, three batteries |
| S-JUNO-NBM1-TH-TRACK-2 | JUNO IP67 TH Tracker, temperature and relative humidity tracker with tilt and activity detection and opening detection NB-IoT, LTE-CAT-M1, GNSS, WIFI SSID Scan, with SIM card slot, two batteries |
| S-JUNO-NBM1-TH-TRACK-3 | JUNO IP67 TH Tracker, temperature and relative humidity tracker with tilt and activity detection and opening detection NB-IoT, LTE-CAT-M1, GNSS, WIFI SSID Scan, with on board SIM, three batteries |
| S-JUNO-IX-NBM1-TH-TRACK-2 | INDUSTRIAL JUNO IP67 TH tracker, temperature and relative humidity tracker with tilt and activity detection and opening detection NB-IoT, LTE-CAT-M1, GNSS, WIFI SSID scan, with SIM card slot, two batteries |
| S-JUNO-IX-NBM1-TH-TRACK-3 | INDUSTRIAL JUNO IP67 TH Tracker, temperature and relative humidity with tilt and activity detection and opening detection NB-IoT, LTE-CAT-M1, GNSS, WIFI SSID Scan, with on board SIM, three batteries |
4. General Properties
| Feature | Value | Unit |
|---|---|---|
| Dimensions (L × W × H) | 86 × 86 × 25 | mm |
| Weight | < 200 | g |
| Operating temperature | -25 to +75 (extended temperature range on request. Temperature range is limited by the maximum operating temperature of the primary cells) | °C |
| Maximum operating temperature (device) | 85 | °C |
| Storage temperature (recommended) | 15 to +30 | °C |
| Relative humidity during operation | 5 to 99 | %RH |
| IP rating |
|
|
| IK rating | TBD | |
| Sensors | Temperature, relative humidity, acceleration sensor | |
| Traffic light function | No | |
| Audible alarm function | Yes, buzzer | |
| Provisioning | NFC | |
| Material | PBT GF20 + ASA | |
| NFC antenna | Integrated | |
| RF antenna | Integrated | |
| Accelerometer | Yes | |
| Batteries | Primary cell, replaceable, AA | |
| Primary cell type |
LoRaWAN®, mioty®: • 2 × 3.6 V LiSOCl₂ (recommended: SAFT LS14500) Cellular: • 2 × 3 V LiMnO₂ spiral AA cell • 2 × 3.6 V LiSOCl₂ spiral AA cell |
|
| Housing color |
S-JUNO-XXXX: black S-JUNO-IX-XXXX: silk gray |
|
| Assembly and installation |
|
5. Connectivity and RF Specification
| Characteristic | Value | Unit |
|---|---|---|
| RF standards | MHz | |
| Frequency LoRaWAN® / mioty® (EU) | 868 | MHz |
| Mobile radio frequency | Band 8, 20 (900 MHz, 800 MHz) | dBm |
| Transmission power LoRaWAN® / mioty® (EU) | 14 | dBm |
| Transmission power NB-IoT | 23 | dBm |
| LoRa® MAC layer version | 1.0.4 |
6. Overview of Tracking Features
| Item Number | Radio Standard | 2.4 GHz Scan | 5 GHz Scan | Max. MAC Addresses |
|---|---|---|---|---|
| S-JUNO(-iX)-LOEU-TRACK | LoRaWAN® | ✔ | ✗ | 6 |
| S-JUNO(-iX)-LOEU-TH-TRACK | LoRaWAN® | ✔ | ✗ | 6 |
| S-JUNO(-iX)-NBM1-TRACK-2 | Cellular | ✔ | ✔ | 20 |
| S-JUNO(-iX)-NBM1-TRACK-3 | Cellular | ✔ | ✔ | 20 |
| S-JUNO(-iX)-NBM1-TH-TRACK-2 | Cellular | ✔ | ✔ | 20 |
| S-JUNO(-iX)-NBM1-TH-TRACK-3 | Cellular | ✔ | ✔ | 20 |
| S-JUNO(-iX)-MIOTY-TRACK | mioty® | ✔ | ✔ | 20 |
| S-JUNO(-iX)-MIOTY-TH-TRACK | mioty® | ✔ | ✔ | 20 |
7. Localization – LoRaWAN Sensors
| Characteristic | Value | Unit |
|---|---|---|
| WIFI SSID Scan | Up to 6 MAC addresses on port 199 | |
| WIFI SSID Scan frequency | 2.4 | GHz |
| WIFI SSID scan accuracy | 6 to 50 | m |
| GNSS | GNSS scan with GPS and BeiDou | |
| GNSS accuracy | 10 to 100 | m |
| Antenna | Integrated | |
| Chipset | LR1110 | |
| Feature for on-prem indoor tracking | Customization by configuring that up to 5 MAC addresses and RSSI values are transmitted in the standard uplink payload | |
| Tracking in the LoRaWAN | Network-dependent | |
| Tracking in motion | Yes |
8. Localization – Cellular Sensors
| Characteristic | Value | Unit |
|---|---|---|
| WIFI SSID Scan | Up to 20 MAC addresses | |
| WIFI SSID Scan frequency | 2.4 and 5 | GHz |
| WIFI SSID scan accuracy | 2 to 50 | m |
| GNSS | GPS, Galileo, GLONASS, BeiDou | |
| GNSS accuracy | 5 to 100 | m |
| Antenna | Integrated | |
| Cell Locate | Supported | |
| Tracking in motion | Yes |

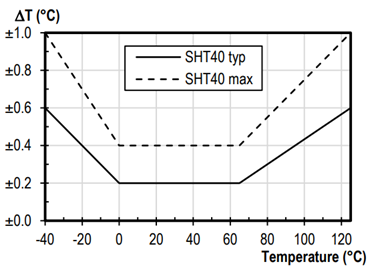

9. Sensor Specification – Temperature
| Characteristic | Value | Unit |
|---|---|---|
| Measuring range | -40 to +125 | °C |
| Drift (long-term) | < 0.03 | °C/year |
| Accuracy | ±0.2 | °C |
| Resolution | 0.1 | °C |
| Repeatability | 0.2 | °C |
More accurate temperature sensors available on request.

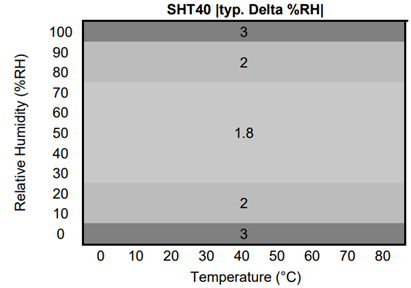

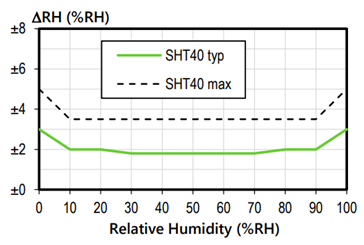

10. Sensor Specification – Relative Humidity
| Characteristic | Value | Unit |
|---|---|---|
| Measuring range | 0 to 100 | %RH |
| Drift (long-term) | < 0.25 | %RH/year |
| Accuracy | ±1.8 | %RH |
| Resolution | 1 | %RH |
| Repeatability | 0.25 | %RH |
11. Sensor Specification – Inclination
| Characteristic | Value | Unit |
|---|---|---|
| Measuring range | 0 to 360 | ° |
| Accuracy | ±2 | ° |
| Triggering in low power mode for opening detection | ±60 | ° |
12. Sensor Specification – Temperature of Acceleration Sensor
| Characteristic | Value | Unit |
|---|---|---|
| Measuring range | -40 to +85 | °C |
| Accuracy | ±0.8 | °C |

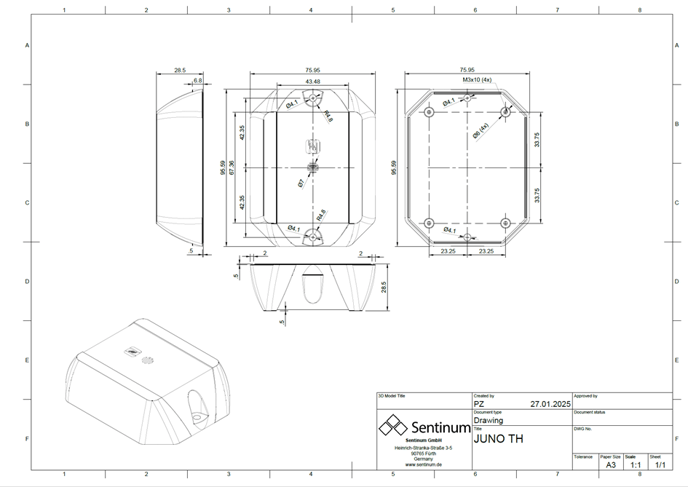

13. Technical Drawing
