1. Versions
| Item Code | Features |
|---|---|
| S‑NYXX‑LOEU‑THL | NYX, LoRaWAN EU, temperature, relative humidity, ambient light indicator |
| S‑NYXX‑MIOTY‑THL | NYX, mioty EU, temperature, relative humidity, ambient light indicator |
2. General Data
| Feature | Value | Unit |
|---|---|---|
| Dimensions | 86.5 × 67 × 8.5 (without wall mount) | mm |
| Weight | 120 | g |
| Operating temperature | 5 – 60 | °C |
| Storage temperature | 15 – 25 | °C |
| Relative humidity (operation) | 5 – 90 | %RH |
| IP rating | 21 | |
| Sensors | Temperature, relative humidity, ambient light | |
| Traffic light function | Yes, LEDs | |
| Acoustic alarm | Buzzer, beep tone | |
| Provisioning | NFC | |
| Material | ABS | |
| NFC antenna | Integrated | |
| BLE antenna | – | |
| RF antenna | Integrated | |
| Accelerometer | – | |
| Batteries | Supercap, pouch cells, non‑replaceable | |
| Primary cell type | – | |
| Secondary cell | Supercap, pouch cells |
3. Connectivity and RF Specification
| Feature | Value | Unit |
|---|---|---|
| Sub‑1 GHz RF standards | LoRaWAN®, mioty® | |
| Frequency LoRaWAN, mioty EU | 868 | MHz |
| Cellular frequency | Band 8, 20 | |
| Transmit power LoRaWAN / mioty EU | 14 | dBm |
| Cellular transmit power | Not available | dBm |
| LoRa MAC layer version | 1.0.4 | |
| Regional parameters version | RP002 Regional Parameters 1.0.3 |
4. Temperature Sensor Specification
| Feature | Value | Unit |
|---|---|---|
| Measuring range | -40 to +125 | °C |
| Drift (long‑term) | < 0.02 | °C |
| Resolution | 0.1 | °C |
| Accuracy | ±0.2 | °C |
| Repeatability | 0.2 | °C |
5. Relative Humidity Sensor Specification
| Feature | Value | Unit |
|---|---|---|
| Measuring range | 0 to 100 | %RH |
| Drift (long‑term) | < 0.25 | %RH/year |
| Resolution | 1 | %RH |
| Accuracy | ±2.0 | %RH |
| Repeatability | 0.1 | %RH |
6. Ambient Light Sensor Specification
| Feature | Value | Unit |
|---|---|---|
| Measuring range | 0.01 to 83,000 | lux |
| Resolution | 1 | lux |
7. Running Times
Positive energy balance at 400 lux over 7 hours per day with a measuring rate of 5 minutes and a transmission interval of 2 hours.

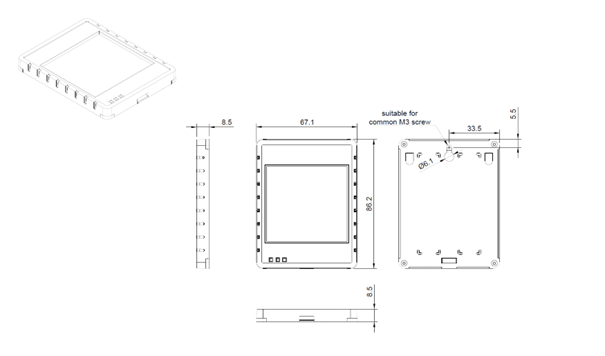

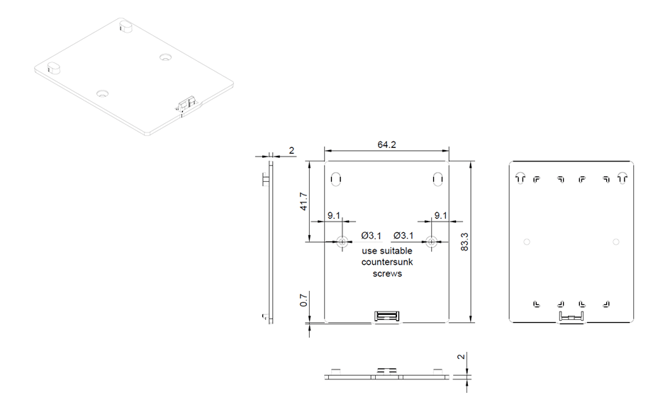

8. Technical Drawings
